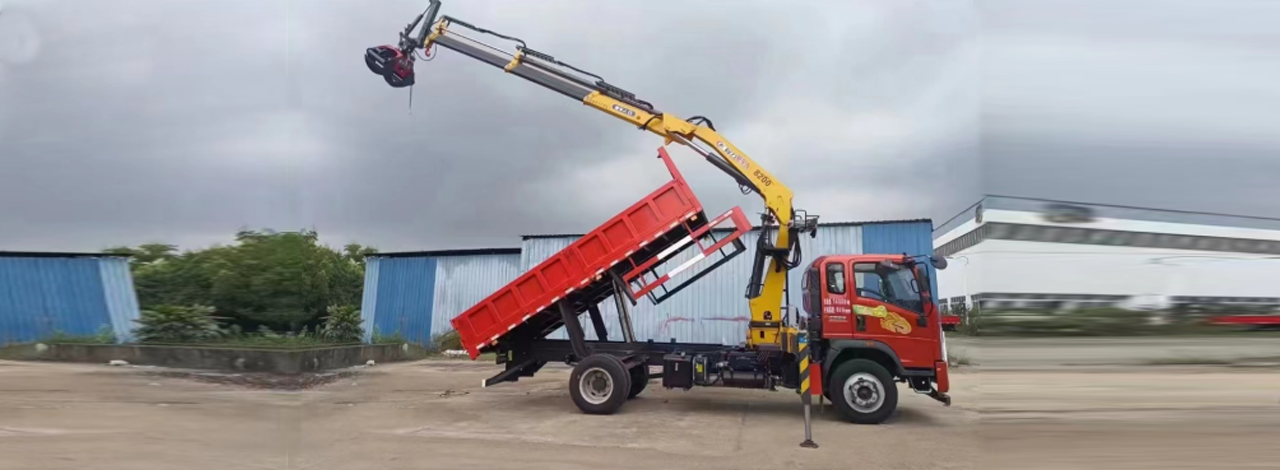

Clamshell Grab Truck

4x4 all-wheel drive chassis with professional off-road tires, offering excellent off-road performance. The vehicle is capable of handling steep roads, sharp turns, numerous pits, soft road surfaces, and narrow paths, providing good maneuverability. Powered by a Weichai engine and a Fast transmission, it has strong power and high fuel efficiency. The high-strength frame with a large rear axle offers strong load-bearing capacity. It is suitable for transporting raw bamboo and timber and can also be used as a garbage collection vehicle.

Technical Parameters

Engine Model WP4.1NQ190E61
Net Power (KW) / Speed (r/min) 140/2600
Maximum Torque (Nm) / Speed (r/min) 680/1300-1900
Transmission 8JS85E
Rear Axle Model 153S(10T),H300(16T)
Rear Axle Ratio 6.833,6.73
Fuel Tank (L) 150
Frame Cross-section (mm) 255
Suspension (Front and Rear Springs) 9/11+8
Tires 10.00R20

Vehicle Configuration

Overall Vehicle Parameters
Engine Model WP4.1NQ190E61
Chassis Dimensions (mm) 6080x2370x2800
Wheelbase (mm) 3650
Front Overhang Rear Overhang (mm) 1280/1150
Maximum Total Mass (Kg) 18000
Seated Passenger Capacity 2,3
#
