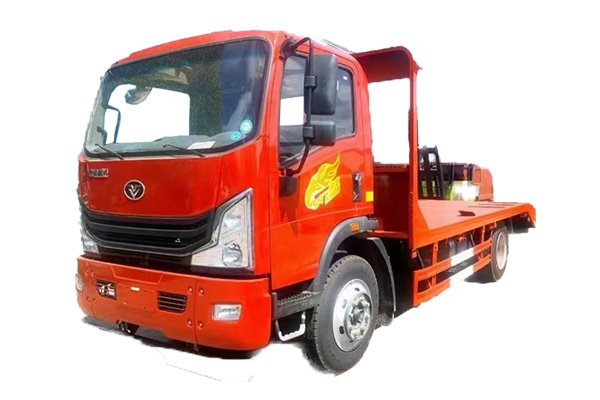

Flatbed Truck

Products are defined for different uses and niche markets, with a complete and diverse range. The combination of Weichai engine and Fast transmission makes the power more robust and energy-saving more efficient. Suitable for the operation of various medium and small excavators, combine harvesters, and other self-propelled equipment.

Technical Parameters

Engine	Model	WP2.5NQ170E62	WP2.5NQ170E62	WP3NQ160E61	WP3NQ160E61	WP4.1NQ160E61	WP4.6NQ220E61A	WP4.6NQ220E61A
	Net Power (KW) / Speed (r/min)	125/2900	125/2900	118/3000	118/3000	118/3000	162/2300	162/2300
	Maximum Torque (Nm) / Speed (r/min)	450/1400-2200	500/1400-2200	480/1400-2300	480/1400-2300	480/1400-2300	850/1200-1800	850/1200-1800

Transmission	8J50TA		8JS85TE	8JS65E	8JS65E	8JS65E	8JS65E	8JS65E
Clutch (mm)	Φ325		Φ325	Φ350	Φ350	Φ395	Φ395	Φ395
Rear Axle Model	1061J（5T）	1080（7.2T）	1080（7.2T）	1080（7.2T）	153AS（9T）		153S（10T）	153S（10T）
Rear Axle Ratio	4.875		4.875	4.875	5.571		4.875	4.875
Fuel Tank (L)	120		120	120	150		200	200
Frame Cross-section (mm)	180	216	216	216	250		280	280
Suspension (Front and Rear Springs)	11/9+7		11/9+7	11/9+7	9/11+8		9/11+8	9/11+8
Tires	7.00R16,8.25R16		7.00R16,8.25R16	8.25R16	8.25R20,9.00R20		8.25R20,9.00R20	10.00R20

Vehicle Configuration

Overall Vehicle Parameters
Engine Model	WP2.5NQ170E62	WP2.5NQ170E62	WP3NQ160E61	WP3NQ160E61	WP4.1NQ190E61	WP4.6NQ220E61A
Chassis Dimensions (mm)	5900x1980x2180	5900x1980x2180	5900x1980x2180	6915,7260,7565x2180x2390	6915,7260,7565x2180x2390	8930x2180x2390
Wheelbase (mm)	3280	3650	3650	3900	3900,4200,4500	5200
Front Overhang Rear Overhang (mm)	1175/1445	1175/1075	1175/1075	1240/1775	1240/1775, 1240/1825	1280/2450
Maximum Total Mass (Kg)	4495,11200	4495,11200	4495,11200	11200,14060	14060,16000	18000
Seated Passenger Capacity	2,3	2,3	2,3	2,3	2,3	2,3
