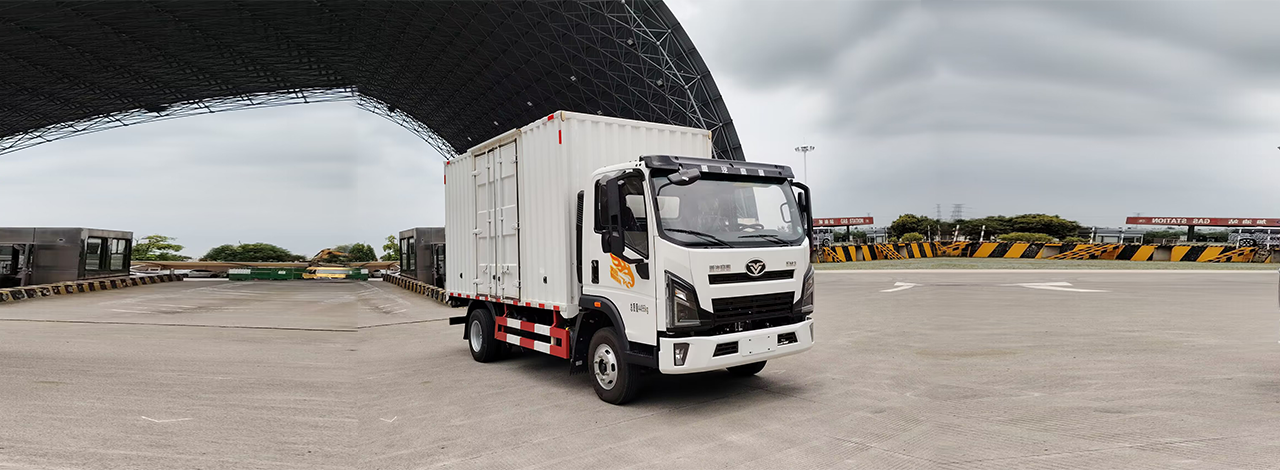

Sinotruk Haoman Pure Electric Light Truck 100.46

The Haoman 100.46kWh pure electric light truck is equipped with CATL's third-generation battery, Isprin electric control system, and Fangsheng electric drive axle. The three electric systems are all from well-known brands in the industry, ensuring stability and reliability with worry-free after-sales service. The motor has a peak power of 120kW and a peak torque of 340Nm, providing strong power, matched with a 180/800 direct-through frame, offering strong load-bearing capacity and adaptability to various working conditions. It can meet the needs of various body types such as Warehouse Lattice、Box Type、Refrigerated, and is suitable for urban distribution, logistics express, light cargo, and cold chain transportation in various niche markets. It also offers the option of air brake braking, providing strong braking force to ensure the safety of the vehicle and its occupants, with worry-free travel.

Technical Parameters

Motor Model TZ228XS032
Rated/Peak Power 60/120
Rated/Peak Torque 150/340
Transmission /
Rear Axle Model 4.5T Fangsheng Electric Drive Axle
Rear Axle Ratio 16.56
Battery (kWh) CATL 100.46
Frame Section (mm) 180
Suspension (Front Spring Rear Spring) 3/3+2
Tires 7.00R16

Vehicle Configuration

Overall Vehicle Parameters
Motor Model TZ228XS032
Dimensions (mm) 5995x2200x3100
Wheelbase (mm) 3360
Front Overhang Rear Overhang (mm) 1175/1460
Maximum Designated Total Mass (Kg) 4495
Rated Passenger Capacity (people) 3
#
