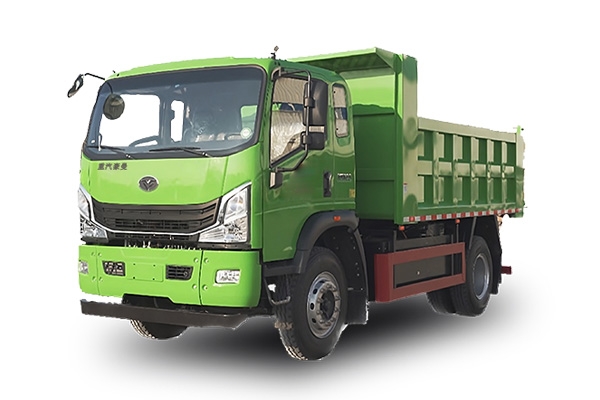

Sinotruk Haoman 18T Pure Electric Dump Truck
The Haoman 18T pure electric dump truck is equipped with a CATL 180.87kWh battery, Weichai electric control system, and Fast powertrain, offering strong power.
This vehicle model has a strong load-bearing capacity and is eligible for green license plates, allowing it to operate in major cities. It complies with regulatory requirements and is suitable for transporting various types of materials such as sand, cement, building materials, and waste in multiple market segments.
Technical Parameters
| Motor | Model | Minggao TZ342XSHX16501 |
| Rated/Peak Power | 105/165 | |
| Rated/Peak Torque | 500/1000 |
| Transmission | / |
| Rear Axle Model | 153S（10T） |
| Rear Axle Ratio | 5.571 |
| Battery (kWh) | 180.87 |
| Frame Section (mm) | 255 |
| Suspension (Front Spring Rear Spring) | 10/11+8 |
| Tires | 10.00R20-18PR |
Vehicle Configuration
| Overall Vehicle Parameters | |
| Motor Model | TZ342XSHX16501 |
| Dimensions (mm) | 6850x2400x3100 |
| Wheelbase (mm) | 3800 |
| Front Overhang Rear Overhang (mm) | 1280/1770 |
| Maximum Designated Total Mass (Kg) | 18000 |
| Rated Passenger Capacity (people) | 3 |
