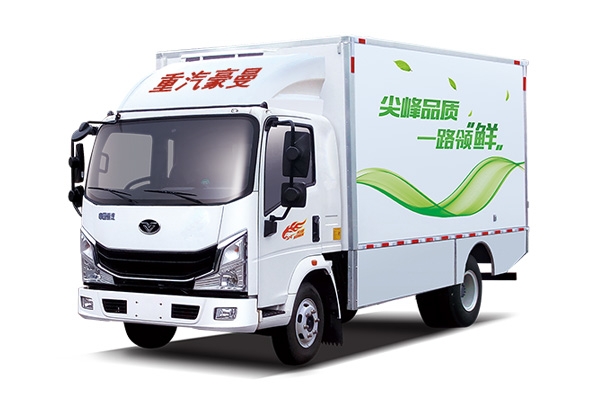

Sinotruk Haoman Pure Electric Light Truck 100.27

The Haoman 100.27kWh pure electric light truck is equipped with CATL batteries, Isprin electric control systems, and Fangsheng electric drive axles. All three electric systems are well-known brands in the industry, ensuring stability and reliability. The motor has a peak power of 120kW and a peak torque of 340Nm, providing strong power, matched with a 180/800 direct-through frame, offering strong load-bearing capacity and adaptability to various working conditions. It can meet the needs of various body types such as warehouse lattice, box type, and refrigerated units. It is suitable for urban distribution, logistics express, light cargo, and cold chain transportation in various niche markets, with stable endurance and high cost-effectiveness. It also offers the option of air brake braking, providing strong braking force to meet the transportation needs of complex road conditions, ensuring the safety of the vehicle and its occupants to the greatest extent, and worry-free travel.

Technical Parameters

Motor Model TZ228XS032
Rated/Peak Power 60/120
Rated/Peak Torque 150/340
Transmission /
离合器(mm) /
Rear Axle Model 4.5T方盛电驱桥
Rear Axle Ratio 16.56
Battery (kWh) CATL 100.27
Frame Section (mm) 180
Suspension (Front Spring Rear Spring) 3/3+2
Tires 7.00R16-8PR

Vehicle Configuration

Overall Vehicle Parameters
Motor Model TZ228XS032
Dimensions (mm) 5995x2200x3100
Wheelbase (mm) 3280
Front Overhang Rear Overhang (mm) 1175/1540
Maximum Designated Total Mass (Kg) 4495
Rated Passenger Capacity (people) 3
#
