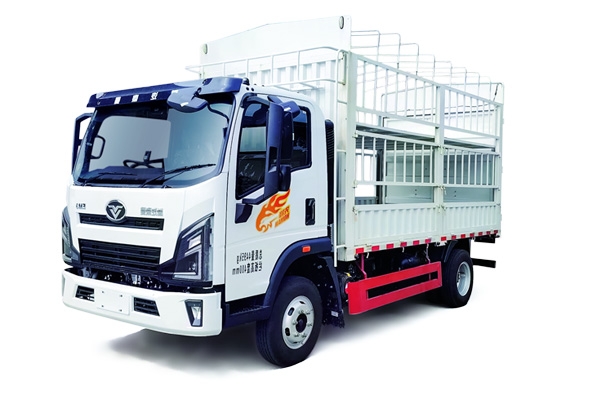

Sinotruk Haoman 4.5T Plug-in Diesel Hybrid Light Truck

The Haoman 4.5T hybrid light truck is equipped with a Weichai WP2.5NQ170E62 engine, offering 170 horsepower for strong power and load-bearing capacity. It is matched with an 8-speed HW51508ACL transmission and a 40kW Petal electric motor, featuring intelligent switching between oil and electric modes for energy-saving and fuel efficiency. It meets the green license plate requirements for city entry and is suitable for short-distance transportation, intercity transportation, express delivery, and urban distribution in niche markets. The Haoman hybrid light truck offers worry-free range and cost-saving efficiency, making it a great helper for drivers to increase their wealth.

Technical Parameters

Motor Model WP2.5NQ170E62
Rated/Peak Power 121/2900
Rated/Peak Torque 450/2900
Transmission 8-speed HW51508ACL
Rear Axle Model 1061J/5T
Rear Axle Ratio 4.875
Battery (kWh) CATL 15.45
Frame Section (mm) 193
Suspension (Front Spring Rear Spring) 3/5+3
Tires 7.00R16-8PR

Vehicle Configuration

Overall Vehicle Parameters
Motor Model WP2.5NQ170E62
Dimensions (mm) 5995x2200x3350
Wheelbase (mm) 3360
Front Overhang Rear Overhang (mm) 1175/1460
Maximum Designated Total Mass (Kg) 4495
Rated Passenger Capacity (people) 3
#
