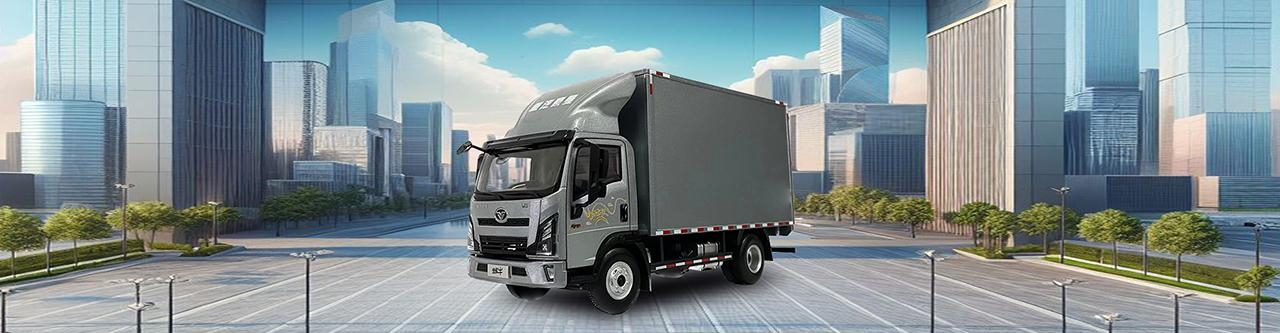

Ox Spirit WP2.5 Cargo Truck

The Haoman light cargo truck is powered by a Weichai Power WP2.5NQ170E62 engine, matched with a Fast 8-speed transmission, offering strong power and a forceful start. The high-strength steel frame combined with a large rear axle provides excellent load capacity. It features a high-end braking system that has passed multiple reliability tests, ensuring excellent braking performance and safer driving. It is suitable for applications in complex working conditions such as grain transportation and recycling of renewable resources.
Technical Parameters
Engine | Model | WP2.5NQ170E62 |
Net Power (KW)/Speed (r/min) | 121/2900 | |
Maximum Torque (Nm)/Speed (r/min) | 500/1400-1800 |
Transmission | 8J50TA transmission |
Clutch (mm) | Φ325 |
Rear Axle Model | 1061J(5T) |
Rear Axle Ratio | 4.875 |
Fuel Tank (L) | 150 |
Frame Section (mm) | 180 |
Suspension (Front Spring Rear Spring) | Front and rear multi-leaf spring (11/9+7) |
Tires | 7.00R16-8PR |
Vehicle Configuration
Overall Vehicle Parameters | |
Engine Model | WP2.5NQ170E62 |
Dimensions (mm) | 5998×2100×400 |
Wheelbase (mm) | 3280 |
Front Overhang Rear Overhang (mm) | 1175/1543 |
Maximum Designated Total Mass (Kg) | 4495 |
Rated Passenger Capacity (people) | 2,3 |
