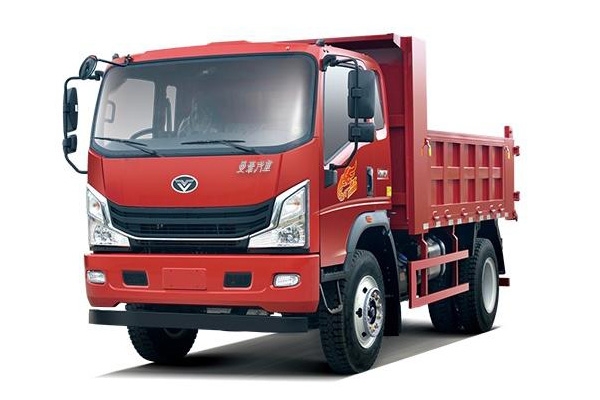

Ox Luck Front and Center: 4×2 Yellow License Dump Truck

This dump truck is equipped with a Weichai Power WP4.1NQ190E61 engine, matched with a Fast 8-speed wide speed ratio and small step ratio transmission along with a large speed ratio drive axle, providing stronger vehicle start and climbing capabilities. The heavy-duty truck technology features an overall roll-pressed one-time formed frame, offering greater load capacity. The frame is fully treated with electrophoresis, and the bolts and nuts are galvanized for corrosion resistance, ensuring durability. The widened and enlarged rear flip support and upper body balance beam make the vehicle more stable and safer to use. It is more suitable for the transportation needs of urban and rural small waste and building materials.
Technical Parameters
Engine | Model | WP4.1NQ190E61 |
Net Power (KW)/Speed (r/min) | 136/2600 | |
Maximum Torque (Nm)/Speed (r/min) | 680/1300-1900 |
Transmission | 8JS85E transmission |
Clutch (mm) | Φ440 |
Rear Axle Model | 153(10T) |
Rear Axle Ratio | 5.571 |
Fuel Tank (L) | 150 |
Frame Section (mm) | 255 |
Suspension (Front Spring Rear Spring) | Front and rear multi-leaf spring (9/11+8) |
Tires | 10.00R20-18PR |
Vehicle Configuration
Overall Vehicle Parameters | |
Engine Model | WP4.1NQ190E61 |
Dimensions (mm) | 6150×2480×2800,6530×2480×2800 |
Wheelbase (mm) | 3400/3600 |
Front Overhang Rear Overhang (mm) | 1280/1470,1280/1650 |
Maximum Designated Total Mass (Kg) | 18000 |
Rated Passenger Capacity (people) | 2,3 |
